sedak: Insulating glass in all bullet-resistance classes “A+Awards Special Mention 2020” for sedak isosecure

As protection against attacks using weapons sedak offers protection in the bullet-resistance classes BR2 NS to BR7 NS (according to DIN EN 1063), so up to the highest level of protection, with its insulating glass sedak isosecure. Glass panes are therefore available to suit every security requirement level. The glass does without the polycarbonate system that is usually used, whereby the fire risk is reduced in comparison to conventional solutions. In August 2020, sedak isosecure achieved a “Special Mention” in the well-known Architizer A+Awards. The comprehensive overall functionality of the insulating glass was commended.

Seats of government and embassies, private houses with increased security requirements, airports and venues for events: there are many buildings that have high security requirements in connection with protection against attacks with firearms. This places high demands, especially on the transparent surfaces. The glass processor sedak offers the bullet-resistant insulating glass sedak isosecure to meet these demands. It is now widely certified in the bullet-resistance classes BR 2 NS to BR7 NS (according to DIN EN 1063). In the highest bullet-resistance class the panes even withstand attacks with hardened steel-core ammunition.

The bullet-resistant insulating glass is available up to a maximum format of 3.6 x 20 meters – and is also certified for thermally toughened glass. A special feature is that isosecure achieves its high splinter-free resistance without use of the conventional polycarbonate system. This reduces the fire risk significantly.

Independent of the security class, the glass can be supplied with the usual solar and heat control coatings. Reliable security and aesthetically pleasing transparency for representative buildings with high security requirements are therefore no longer mutually exclusive – through the use of bullet-proof, oversized glass panes. This is all the more true since the pane construction always has glass (and not film) on both external sides: so that the impression made by the glass remains undisturbed from both the inside and the outside.

Award-winning

At the beginning of August sedak isosecure received a special award for its high functionality, which combines high aesthetic requirements with modern energy standards and special functions: in the well-known architecture product competition “A+Awards” from the American portal “Architizer” the glass received a “Special Mention” in the category “Facades – glass and glazing”.

Top security on both sides: sedak secuprotect

sedak also offers bullet-resistance for glass with a monolithic construction. It provides protection from both sides. This makes particular sense, for example, where large numbers of people stream past each other and it is difficult to predict in advance the position from which an act of violence will start (passenger movements in airports etc.). The construction of sedak secuprotect solves this problem elegantly as its symmetrical design offers certified bullet-resistance from both sides. The safety glass is certified for the highest bullet-resistance class BR7 NS and even achieves STANAG Level 3.

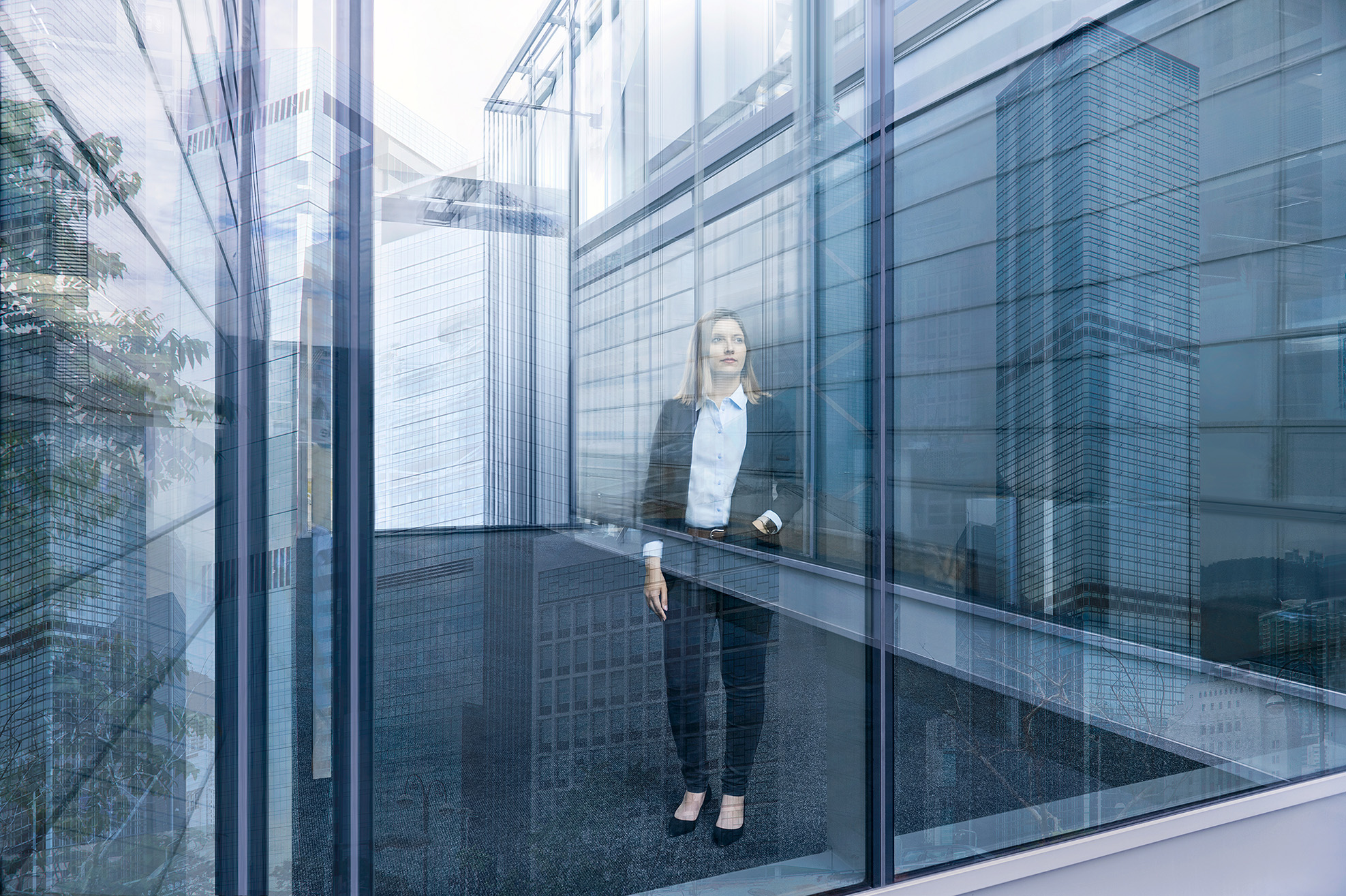

sedak isosecure: The safety glass in the bullet-resistance classes
BR2 NS to BR7 NS resists shots with hard-core ammunition and
provides fire-protection qualities – it is available up to a maximum
format of 3.60 x 20 meters.
Photo: sedak

Award-winning: With a “Special Mention” in the category
“Facades – glass and glazing” sedak isosecure is one of the
winners in the international “Architizer A+Awards”. Only
around five percent of the products submitted achieve an award.
Photo: sedak

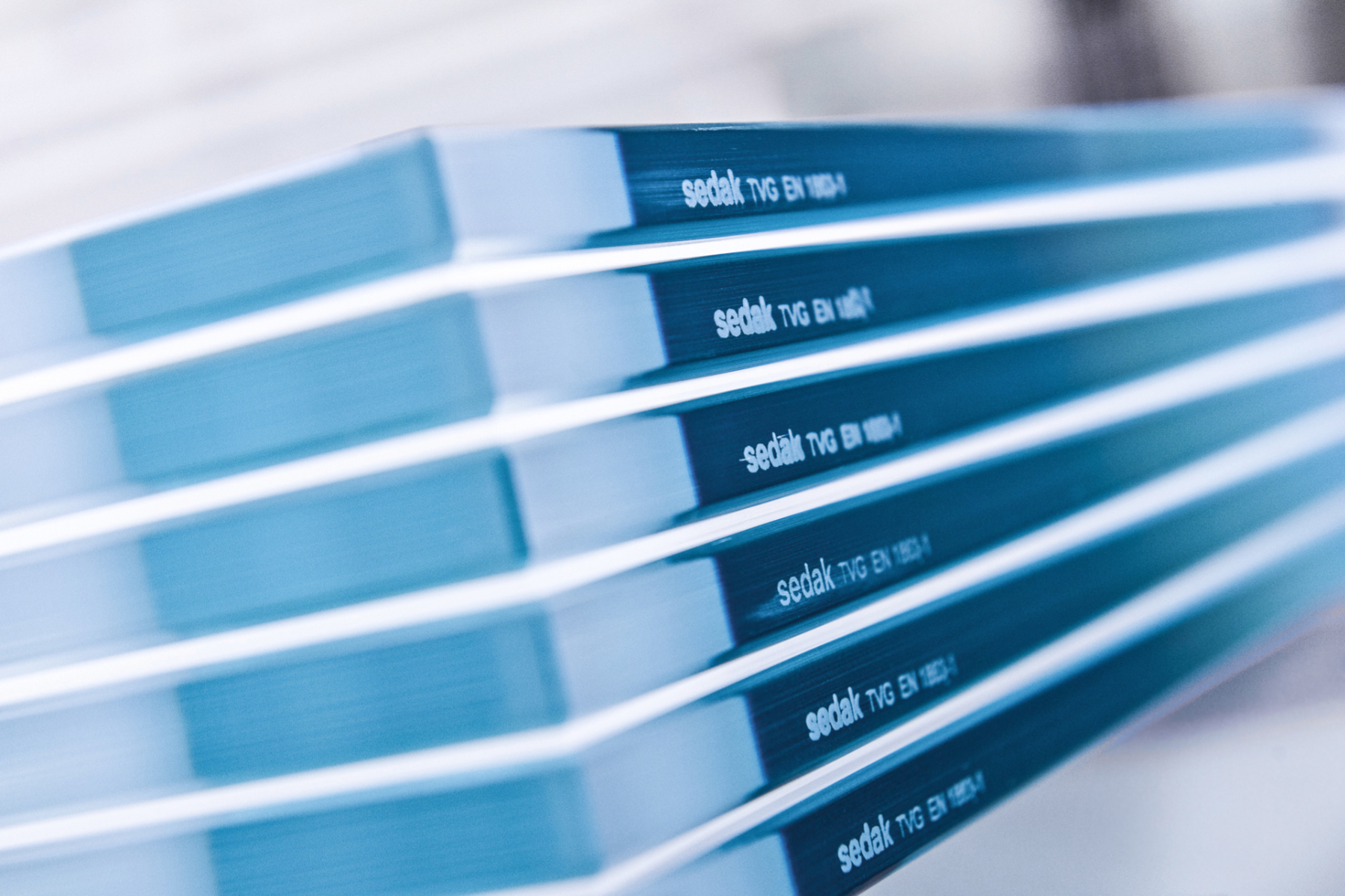

sedak secuprotect: sedak also offers certified bullet resistance
for glass with a monolithic construction – and that from both sides.
Photo: sedak

For more information please contact:

Reprint free of charge, copy requested

Leading glass

sedak, the glass manufacturer in Gersthofen, Germany, was founded in 2007. The company and its 170 employees have developed into the world’s technology and innovation leader for large insulating and safety glass. With a ten-year experience of manufacturing oversize glass and after having increased the level of automation continuously, sedak is regarded as a specialist in this know-how intensive segment. The glass units reach dimensions up to 3.51 m x 20 m – processed, tempered, laminated, printed, coated, and cold bent. The core capabilities are the lamination of glass, edging, and the company’s special knowledge of producing glass components with additional functional and decorative elements. sedak’s production has been optimized for extraordinary glass sizes and weights; all finishing steps are highly automated and handled in-house. As a full supplier for glass up to 20 m, sedak sees itself as a partner for architects, designers, and façade constructors. Outstanding references are for example the House of European History in Brussels, the Faculty of Medicine in Montpellier, the Torre Europa in Madrid, Brookfield Place in New York City, the United Nations Office at Geneva, the Apple Cube in New York City, the science center experimenta in Heilbronn, as well as numerous premium flagship stores worldwide.

Applications

• glass façades
• glass roofs
• glass stairs
• glass balustrades
• ship building
• safety glazing
• all-glass constructions
• interior design
• custum-made glass units
